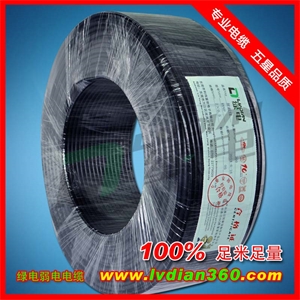

电源护套线
-
产品说明：
导体使用多支铜线绞合
裸铜或镀锡铜编织屏蔽
聚氯乙烯绝缘
聚氯乙烯护套
额定电压Uo/U为300/300V
长期允许工作温度应不超过70℃
包装规格：
200米/卷(包装规格可根据客户要求更改)

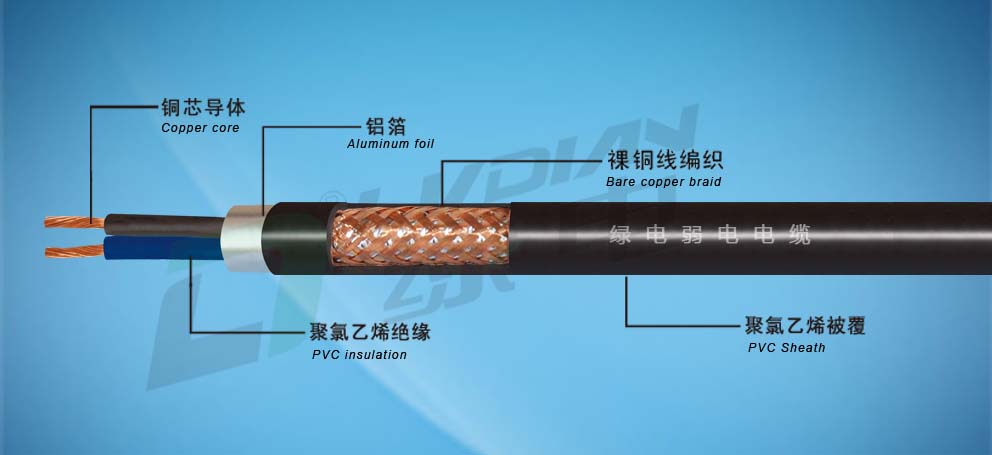

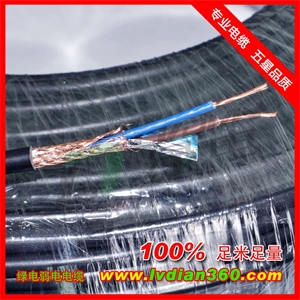

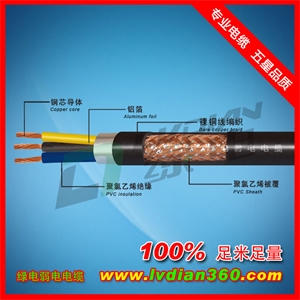

RVVP聚氯乙烯绝缘屏蔽聚氯乙烯护套软电线
1、应用：适用于视频信号、门禁考勤、楼宇对讲、通讯音频、广播音响系统、仪表、电子设备及自动化设备、抗干扰线路屏蔽
2、生产标准：国家标准、企业标准
3、技术参数：
导体使用多支铜线绞合
裸铜或镀锡铜编织屏蔽
聚氯乙烯绝缘
聚氯乙烯护套
额定电压Uo/U为300/300V
长期允许工作温度应不超过70℃
4、包装规格： 200米/卷(包装规格可根据客户要求更改)
RVVP 6×48/0.20
|
型号/规格
|
芯数×标称截面（m㎡） | 绝缘厚度规定值（mm） | 护套厚度规定值（mm） |
编织屏蔽密度≥%
|
平均外径（mm）
|
20℃时导体电
阻最大值Ω/Km |
70℃时导体电阻最小值MΩ.Km
|
|
|
上限
|
下限
|
|||||||
|
RVVP 2×7/0.15 |
2×0.12 |
0.4 |
0.6 |
80 |
3.7 |
4.9 |
158 |
0.016 |
|
RVVP 2×12/0.15 |
2×0.20 |
0.4 |
0.6 |
80 |
4.1 |
5.3 |
92.3 |
0.013 |
|
RVVP 2×16/0.15 |
2×0.30 |
0.5 |
0.6 |
80 |
4.8 |
6.2 |
69.2 |
0.014 |
|
RVVP 2×28/0.15 |
2×0.50 |
0.5 |
0.6 |
80 |
5.3 |
6.8 |
39.0 |
0.012 |
|
RVVP 2×24/0.20 |
2×0.75 |
0.5 |
0.6 |
80 |
5.8 |
7.4 |
26.0 |
0.010 |
|
RVVP 2×32/0.20 |
2×1.00 |
0.6 |
0.6 |
80 |
6.4 |
8.2 |
19.5 |
0.010 |
|
RVVP 2×48/0.20 |
2×1.50 |
0.6 |
0.8 |
80 |
7.3 |
9.2 |
13.3 |
0.009 |
|
RVVP 2×78/0.20 |
2×2.50 |
0.7 |
0.8 |
80 |
8.5 |
10.5 |
7.98 |
0.008 |
|
RVVP 3×7/0.15 |
3×0.12 |
0.4 |
0.6 |
80 |
3.9 |
5.1 |
158 |
0.016 |
|
RVVP 3×12/0.15 |
3×0.20 |
0.4 |
0.6 |
80 |
4.5 |
5.8 |
92.3 |
0.013 |
|
RVVP 3×16/0.15 |
3×0.30 |
0.5 |
0.6 |
80 |
5.1 |
6.5 |
69.2 |
0.014 |
|
RVVP 3×28/0.15 |
3×0.50 |
0.5 |
0.6 |
80 |
5.6 |
7.1 |
39.0 |
0.012 |
|
RVVP 3×24/0.20 |
3×0.75 |
0.5 |
0.6 |
80 |
6.1 |
7.8 |
26.0 |
0.010 |
|
RVVP 3×32/0.20 |
3×1.00 |
0.6 |
0.8 |
80 |
7.2 |
9.1 |
19.5 |
0.010 |
|
RVVP 3×48/0.20 |
3×1.50 |
0.6 |
0.8 |
80 |
8.0 |
10.0 |
13.3 |
0.009 |
|
RVVP 3×78/0.20 |
3×2.50 |
0.7 |
0.9 |
80 |
9.1 |
11.1 |
7.98 |
0.008 |
|
RVVP 4×7/0.15 |
4×0.12 |
0.4 |
0.6 |
80 |
4.5 |
5.8 |
158 |
0.016 |
|
RVVP 4×12/0.15 |
4×0.20 |
0.4 |
0.6 |
80 |
4.9 |
6.2 |
92.3 |
0.013 |
|
RVVP 4×16/0.15 |
4×0.30 |
0.5 |
0.6 |
80 |
5.5 |
7.0 |
69.2 |
0.014 |
|
RVVP 4×28/0.15 |
4×0.50 |
0.5 |
0.7 |
80 |
5.8 |
7.8 |
39.0 |
0.012 |
|
RVVP 4×24/0.20 |
4×0.75 |
0.5 |
0.7 |
80 |
6.6 |
8.6 |
26.0 |
0.010 |
|
RVVP 4×32/0.20 |
4×1.00 |
0.6 |
0.8 |
80 |
7.4 |
9.4 |
19.5 |
0.010 |
|
RVVP 4×48/0.20 |
4×1.50 |
0.6 |
0.8 |
80 |
8.4 |
10.4 |
13.3 |
0.009 |
|
RVVP 4×78/0.20 |
4×2.50 |
0.7 |
0.9 |
80 |
10.2 |
12.2 |
7.98 |
0.008 |
|
RVVP 5×7/0.15 |
5×0.12 |
0.4 |
0.6 |
80 |
4.8 |
6.2 |
158 |
0.016 |
|
RVVP 5×12/0.15 |
5×0.20 |
0.4 |
0.6 |
80 |
5.3 |
6.7 |
92.3 |
0.013 |
|
RVVP 5×16/0.15 |
5×0.30 |
0.5 |
0.6 |
80 |
6.0 |
7.6 |
69.2 |
0.014 |
|
RVVP 5×28/0.15 |
5×0.50 |
0.5 |
0.8 |
80 |
6.2 |
8.2 |
39.0 |
0.012 |
|
RVVP 5×24/0.20 |
5×0.75 |
0.5 |
0.8 |
80 |
7.3 |
9.3 |
26.0 |
0.010 |
|
RVVP 5×32/0.20 |
5×1.00 |
0.6 |
0.9 |
80 |
8.0 |
10.0 |
19.5 |
0.010 |
|
RVVP 5×48/0.20 |
5×1.50 |
0.6 |
1.0 |
80 |
9.4 |
11.4 |
13.3 |
0.009 |
|
RVVP 5×78/0.20 |
5×2.50 |
0.7 |
1.1 |
80 |
11.7 |
13.7 |
7.98 |
0.008 |
|
RVVP 6×7/0.15 |
6×0.12 |
0.4 |
0.6 |
80 |
5.2 |
6.6 |
158 |
0.016 |
|
RVVP 6×12/0.15 |
6×0.20 |
0.4 |
0.6 |
80 |
5.7 |
7.2 |
92.3 |
0.013 |
|
RVVP 6×16/0.15 |
6×0.30 |
0.5 |
0.6 |
80 |
6.5 |
8.2 |
69.2 |
0.014 |
|
RVVP 6×28/0.15 |
6×0.50 |
0.5 |
0.8 |
80 |
7.0 |
9.0 |
39.0 |
0.012 |
|
RVVP 6×24/0.20 |
6×0.75 |
0.5 |
1.8 |
80 |
8.4 |
10.4 |
26.0 |
0.010 |
|
RVVP 6×32/0.20 |
6×1.00 |
0.6 |
1.0 |
80 |
9.3 |
11.3 |
19.5 |
0.010 |
|
RVVP 6×48/0.20 |
6×1.50 |
1.0 |
80 |
10.8 |
12.8 |
13.3 |
0.009 |
|
|
RVVP 6×78/0.20 |
6×2.50 |
0.8 |
1.2 |
80 |
12.7 |
14.7 |
7.98 |
0.008 |
|
RVVP 7×7/0.15 |
7×0.12 |
0.4 |
0.6 |
80 |
5.2 |
6.6 |
158 |
0.016 |
|
RVVP 7×12/0.15 |
7×0.20 |
0.4 |
0.6 |
80 |
5.7 |
7.2 |
92.3 |
0.013 |
|
RVVP 7×16/0.15 |
7×0.30 |
0.5 |
0.6 |
80 |
6.5 |
8.2 |
69.2 |
0.014 |
|
RVVP 7×28/0.15 |
7×0.50 |
0.5 |
0.8 |
80 |
7.3 |
9.3 |
39.0 |
0.012 |
|
RVVP 8×7/0.15 |
8×0.12 |
0.4 |
0.6 |
80 |
5.1 |
7.1 |
158 |
0.016 |
|
RVVP 8×12/0.15 |
8×0.20 |
0.4 |
0.6 |
80 |
5.6 |
7.6 |
92.3 |
0.013 |
|
RVVP 8×16/0.15 |
8×0.30 |
0.5 |
0.6 |
80 |
6.7 |
8.7 |
69.2 |
0.014 |
|
RVVP 8×28/0.15 |
8×0.50 |
0.5 |
0.8 |
80 |
7.9 |
9.9 |
39.0 |
0.012 |
|
RVVP 8×24/0.20 |
8×0.75 |
0.5 |
0.9 |
80 |
9.4 |
11.4 |
26.0 |
0.010 |
|
RVVP 8×32/0.20 |
8×1.00 |
0.6 |
1.0 |
80 |
1.04 |
12.5 |
19.5 |
0.010 |
|
RVVP 8×48/0.20 |
8×1.50 |
0.6 |
1.0 |
80 |
12.7 |
14.7 |
13.3 |
0.009 |
|
RVVP 10×7/0.15 |
10×0.12 |
0.4 |
0.6 |
80 |
6.4 |
8.1 |
158 |
0.016 |
|
RVVP 10×12/0.15 |
10×0.20 |
0.4 |
0.6 |
80 |
7.4 |
9.3 |
92.3 |
0.013 |
|
RVVP 10×16/0.15 |
10×0.30 |
0.5 |
0.6 |
80 |
8.7 |
10.9 |
69.2 |
0.014 |
|
RVVP 10×28/0.15 |
10×0.50 |
0.5 |
0.8 |
80 |
8.9 |
10.9 |
39.0 |
0.012 |
|
RVVP 10×24/0.20 |
10×0.75 |
0.5 |
0.9 |
80 |
10.3 |
12.4 |
26.0 |
0.010 |
|
RVVP 10×32/0.20 |
10×1.00 |
0.6 |
1.0 |
80 |
12.6 |
14.6 |
19.5 |
0.010 |
|
RVVP 10×48/0.20 |
10×1.50 |
0.6 |
1.0 |
80 |
13.6 |
15.6 |
13.3 |
0.009 |
|
RVVP 12×7/0.15 |
12×0.12 |
0.4 |
0.6 |
80 |
6.6 |
8.3 |
158 |
0.016 |
|
RVVP 12×12/0.15 |
12×0.20 |
0.4 |
0.6 |
80 |
7.6 |
9.6 |
92.3 |
0.013 |
|
RVVP 12×16/0.15 |
12×0.30 |
0.5 |
0.6 |
80 |
9.0 |
11.2 |
69.2 |
0.014 |
|
RVVP 12×28/0.15 |
12×0.50 |
0.5 |
0.9 |
80 |
9.5 |
11.5 |
39.0 |
0.012 |
|
RVVP 12×24/0.20 |
12×0.75 |
0.6 |
1.0 |
80 |
12.6 |
14.6 |
26.0 |
0.010 |
|
RVVP 12×32/0.20 |
12×1.00 |
0.7 |
1.1 |
80 |
13.6 |
15.6 |
19.5 |
0.010 |
|
RVVP 12×48/0.20 |
12×1.50 |
0.7 |
1.1 |
80 |
15.2 |
17.2 |
13.3 |
0.009 |
|
RVVP 16×7/0.15 |
16×0.12 |
0.4 |
0.6 |
80 |
7.6 |
9.5 |
158 |
0.016 |
|
RVVP 16×12/0.15 |
16×0.20 |
0.4 |
0.6 |
80 |
8.6 |
10.8 |
92.3 |
0.013 |
|
RVVP 16×16/0.15 |
16×0.30 |
0.5 |
0.6 |
80 |
9.9 |
12.3 |
69.2 |
0.014 |
